DJI Transmission with High-Bright Monitor Combo

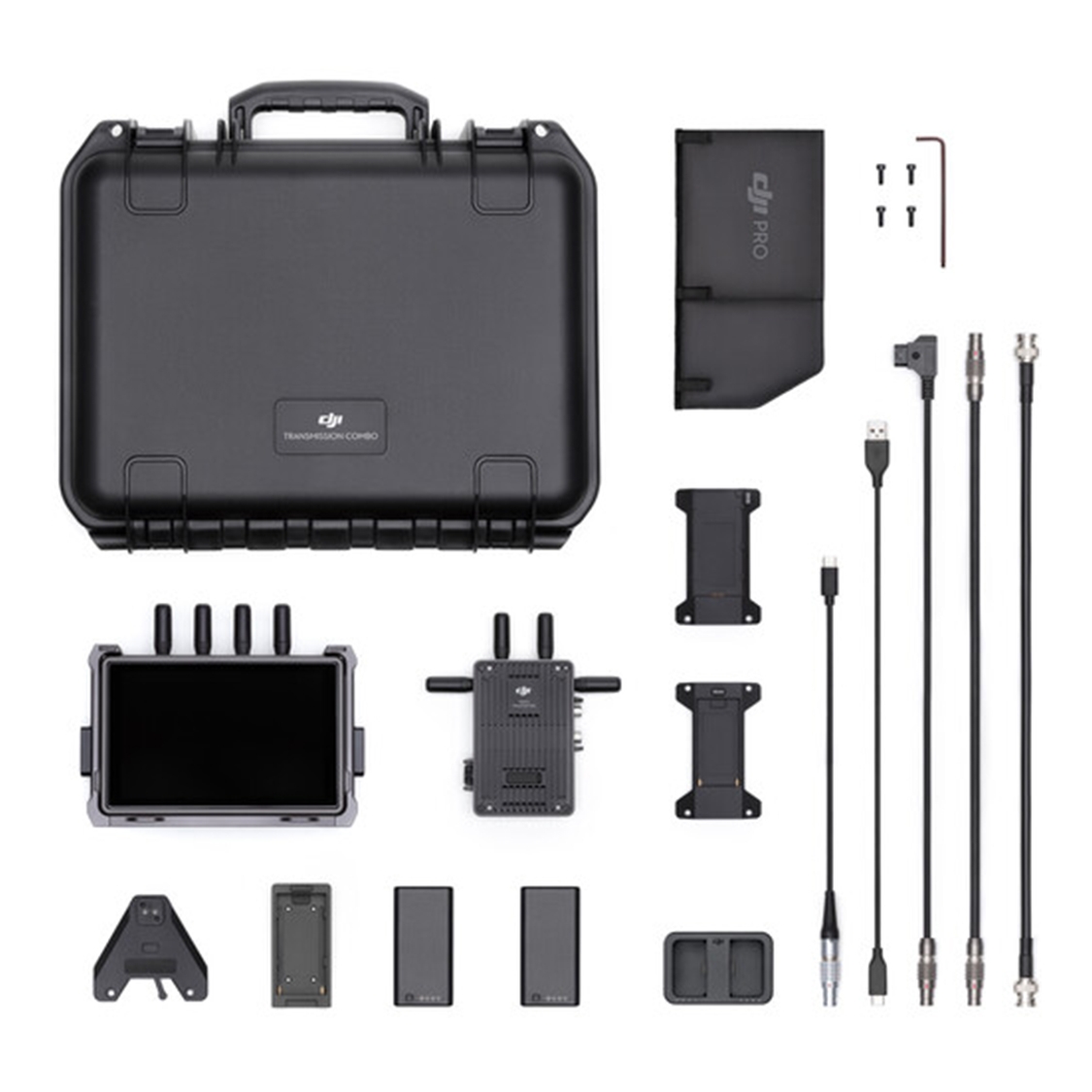

Transmit high-definition video over an impressive 3-mile line-of-sight distance using DJI's Transmission with High-Bright Monitor Combo, designed for use with DJI drones or gimbal systems. This combo includes a transmitter and a monitor/receiver that supports 1080p60 video transmission via DJI's advanced O3 Pro technology over 2.4 and 5 GHz Wi-Fi frequencies. For enhanced signal strength and range, optional high-gain antennas are available. The monitor features a bright 1500 cd/m squared touchscreen display with a 1920 x 1200 resolution, ensuring clear and detailed visuals even in challenging lighting conditions.

The system supports automatic frequency hopping to optimize signal strength, while AES 256-bit encryption ensures secure video transmission. In Control mode, it allows simultaneous transmission to two receivers and provides remote control over gimbal or camera functions via the touchscreen or its built-in gyroscopic sensor. For larger productions, Broadcast mode enables transmission to unlimited receivers, offering slightly reduced performance but supporting expansive monitoring setups.

Powering options for the units include a WB37 battery, DC power input, or direct power from DJI gimbals like the Ronin 2 or RS 3. The monitor enhances production workflows with imaging tools such as waveform, frame guide, and false color, and supports custom LUT imports for tailored color grading. With an optional expansion plate, the system gains HDMI and SDI output capabilities, along with additional DC input and connections to Master Wheels or Force Pro for expanded control.

Long-Distance HD Transmission: DJI's O3 Pro technology provides a remarkable 20,000-foot on-ground transmission range with 1080p60 video at 50 Mb/s and live audio monitoring at 16-bit/48 kHz for professional remote monitoring.

Ultra-Low Latency: The system uses the same advanced chip technology as the Ronin 4D, ensuring minimal latency for seamless pairing with high-end cinema cameras like the ARRI ALEXA Mini LF.

Triple-Band Auto Frequency Hopping: Incorporates the DFS band alongside 2.4 and 5.8 GHz for up to 23 interference-free channels. A built-in frequency sweeper allows manual channel selection to avoid conflicts.
Versatile Transmission Modes: Control mode ensures optimal performance with two receivers and remote gimbal/camera control, while Broadcast mode allows unlimited receivers for large-scale productions.

Encrypted Security: AES 256-bit encryption and DJI’s proprietary chip technology safeguard your video feed from unauthorized access.

Customizable Imaging Tools: Features include frame guides, false color, waveform analysis, and LUT import for accurate monitoring and creative flexibility.

With its advanced capabilities, secure transmission, and versatile applications, the DJI Transmission with High-Bright Monitor Combo is an essential tool for professionals requiring reliable and high-quality monitoring on set.
